제품 상세 정보:
|
| 자격증: | CE, ISO 9001, ISO 45001, ISO 14001 | 일정한 토크 범위: | 0-4000rpm |
|---|---|---|---|
| 정전력 범위: | 4000-15000rpm | 보증: | 1 년 |
| 최대 작업 속도: | 15000rpm | 정격 토크: | 382Nm |
| 평가 된 전력: | 160kW | 측정 범위: | 0-500Nm |
| 무게: | 1200kg | 정격 전압: | 380V |
| 유형: | 전기 동력계 | ||
| 강조하다: | 160KW AC dynamometer test bench,new energy motor dynamometer system,AC dynamometer with 15000 RPM |
||

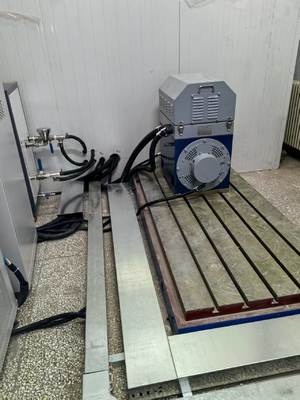

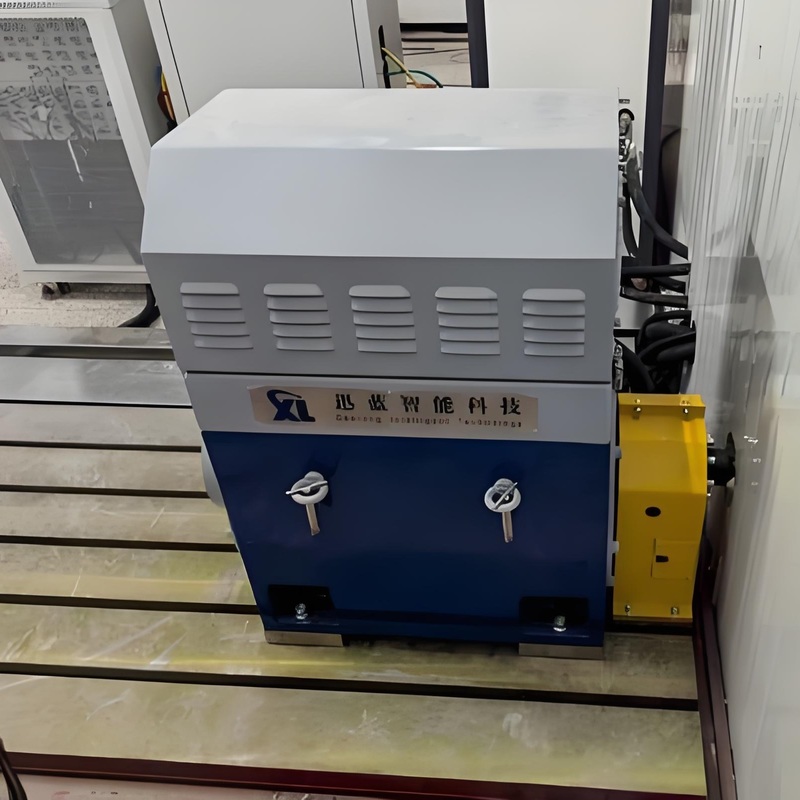

SSCH160-4000-15000 160KW New Energy Motor Dynamometer Test Bench System 1. 160KW New Energy Motor Dynamometer Test Bench System Components Description Name Specifications Accuracy and Performance Indicators Brand Electric dynamometer Power 160kW; rated speed 4000rpm; rated torque 382Nm; maximum speed 15000rpm; water cooling (flow rate ≥ 20L/min) Seelong Torque flange Measuring range 0-500Nm; signal output 4-20mA 0.2% FS; Repeatability error ≤ 0.1% FS HBM Variable frequency
