제품 상세 정보:
|
| 자격증: | CE, ISO 9001, ISO 45001, ISO 14001 | 일정한 토크 범위: | 0-4500rpm |
|---|---|---|---|
| 정전력 범위: | 4500-17000rpm | 보증: | 1 년 |
| 최대 작업 속도: | 17000rpm | 정격 토크: | 117Nm |
| 평가 된 전력: | 55kW | 측정 범위: | 0-500Nm |
| 무게: | 700kg | 정격 전압: | 380V |
| 유형: | 전기 동력계 | ||
| 강조하다: | 55KW motor dynamometer test bench,new energy motor test system,AC dynamometer with 17000 RPM |
||

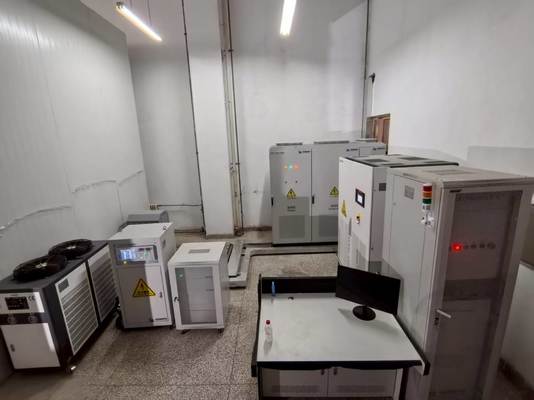

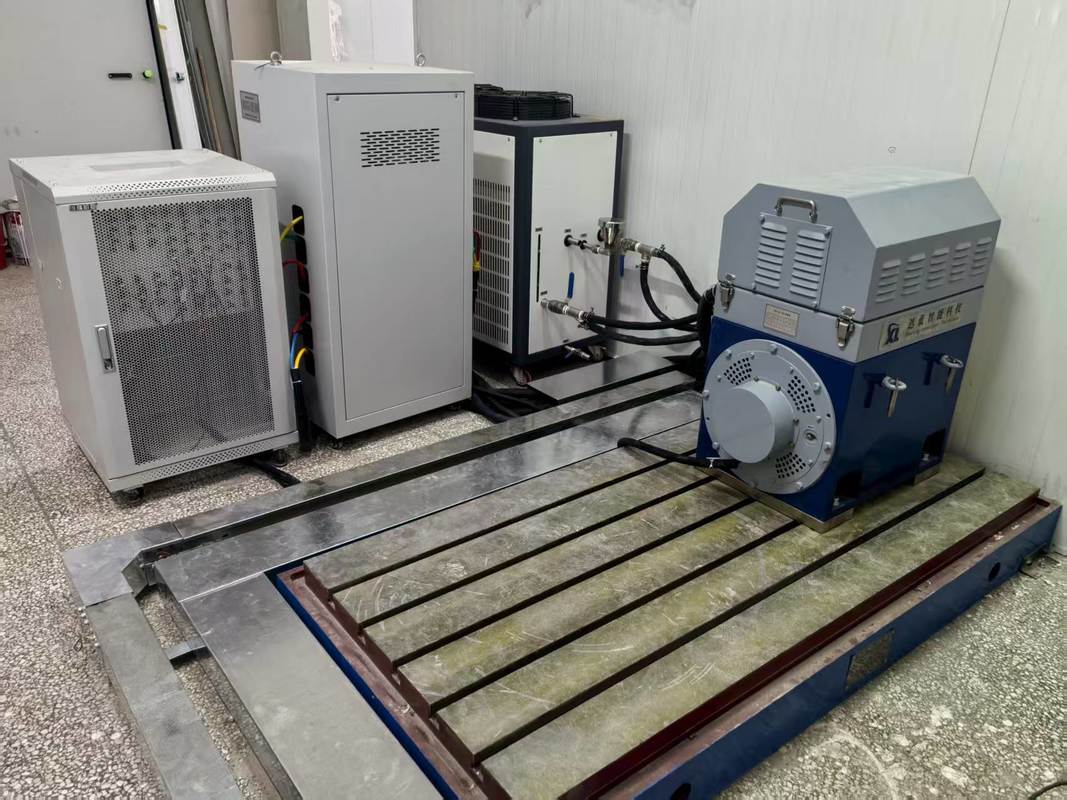

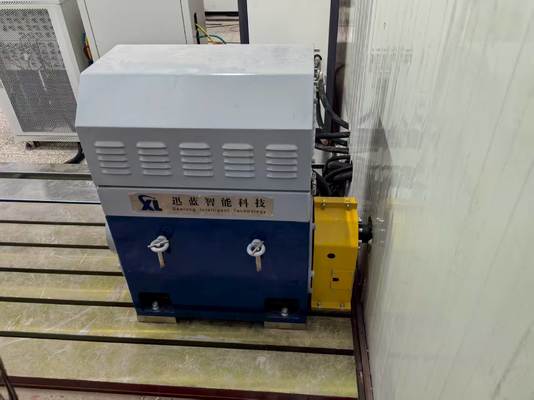

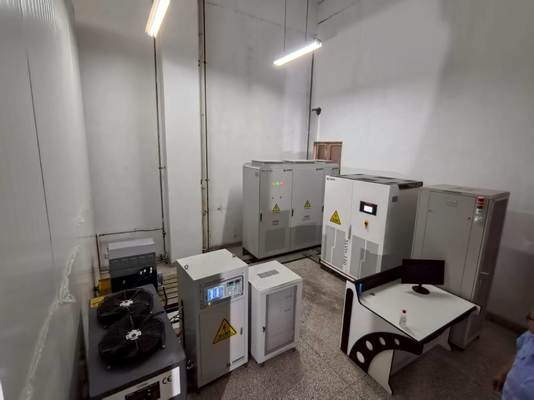

SSCH55-4500/17000 55KW New Energy Motor Dynamometer Test Bench System 1. 55KW New Energy Motor Dynamometer Test Bench System Components Description Name Specifications Accuracy/Performance Indicators Brand Electric dynamometer Power 55kW; rated speed 4500rpm ; rated torque 117Nm ( 9550×55/ 4500 ); maximum speed 17000rpm; air cooling - Seelong Torque flange Measuring range 0-200Nm; signal output 4-20mA; suitable for micro motor low torque testing 0.2% FS; repeatability error ≤
