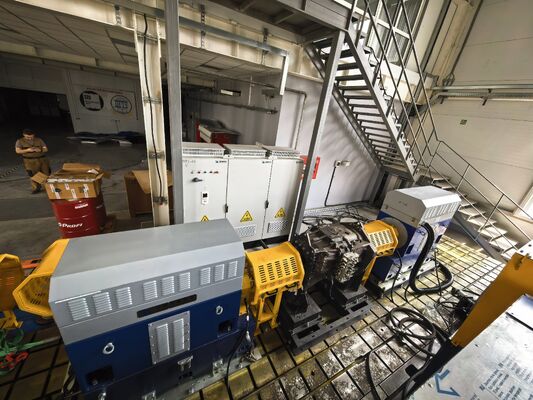

SSCH350-4000/10000 350kW Transmission Type Dynamometer Test Bench System

1) Heavy-duty high-precision measurement: The core torque and speed measurement accuracy reaches the industry-leading level (torque ±0.2% FS, speed ±1r/min), combined with 48 channels of analog signal acquisition and 24 channels of temperature acquisition, comprehensively covering the key performance parameters of heavy-duty transmissions. The data is traceable and exportable, meeting the needs of product certification and scientific research verification.

2) Wide speed and heavy load coverage: 4000-10000rpm rated speed range, rated torque 836Nm, which can be extended to 15000rpm when paired with a heavy load speed increaser. It is suitable for high-speed heavy load testing of heavy-duty transmissions such as ultra-heavy commercial vehicles, construction machinery, and industrial gearboxes, and supports complex working condition simulation such as load simulation and temperature control.

3) Strong adaptability to heavy loads: Designed specifically for high power density transmissions, its heavy-duty mechanical structure, enhanced cooling system, and high-voltage power supply unit are all adapted to continuous heavy-duty conditions and can complete 1000 hours of continuous durability testing.

4) Modular expansion and upgrade: Each system unit is an independent heavy-duty module, supporting power upgrades from 350kW to 400kW, expansion of test channels, and adaptation to new test standards. In the future, it can be flexibly expanded according to production capacity increases or research directions, reducing equipment iteration costs.

5) Stable and reliable under heavy load: The core components are selected from international first-tier brands such as ABB high-power frequency converter and Yokogawa heavy-duty power analyzer. The heavy-duty core dynamometer and measurement and control system are independently developed and have undergone 1,000 hours of heavy-duty operation verification. Equipped with torque calibration device, multiple overload protection and other safety designs, it can operate stably 24 hours a day without worry.

6) Integrated delivery: The entire system of heavy-duty dynamometer, control, data acquisition and protection is pre-integrated. Heavy-duty working condition debugging and calibration are completed in the factory, and the system can be put into use on site, which greatly shortens the project implementation cycle.

7) Heavy-load energy optimization: Adopting the principle of electrical closed testing, the electrical energy generated by the heavy-load dynamometer can be fed back to the power supply system, saving more than 30% of energy costs compared with traditional test benches, and is suitable for continuous heavy-load testing scenarios.

1) Heavy-duty vehicle manufacturing: performance testing, life verification, and factory inspection of AT, AMT, and hydraulic transmissions for heavy-duty commercial vehicles and special vehicles, as well as heavy-duty reducers for new energy vehicles;

2) Construction machinery sector: high-load, long-term, complex operating condition simulation testing of transmissions for heavy equipment such as excavators, loaders, cranes, and mining machinery;

3) Industrial transmission field: heavy-duty performance evaluation and life testing of large industrial gearboxes, belt drive systems, and chain drive systems;

4) Rail transit field: speed and torque matching tests and reliability verification of transmissions for heavy-duty rail transit vehicles;

5) Research and Educational Institutions: Core experimental platform for universities and research institutes to conduct research on topics such as transmission efficiency of heavy-duty transmissions, fault diagnosis, application of new materials, and energy-saving technologies;

6) Parts manufacturers: Performance verification and quality control testing of core components of heavy-duty transmissions (heavy-duty gears, shafts, clutches).

1) National Standard: "Test Methods for Automotive Transmissions Test Bench" QC/T 29063-2011;

2) Industry standards: JB/T 10409-2004 "Test Methods for Transmissions of Engineering Machinery" and GB/T 8542-2008 "Test Methods for Industrial Gearboxes";

3) ISO/TR 19972 "Power take-off shafts and power input connections for agricultural and forestry tractors"

4) Enterprise Standards: Internal testing specifications developed based on international standards such as ISO 15085, SAE J2360, and DIN 3990;

5) Customized standards: We can adapt to the specific needs of our clients and tailor our testing processes and technical requirements.

Delivery services

1) Standard model: Ships within 90 days (including pre-testing before delivery to ensure quick installation upon arrival).

2) Customized models: Delivery in 90-120 days, covering international logistics and distribution to major regions worldwide including Europe, America, Southeast Asia, and the Middle East (sea / land transportation options available, including secure packaging and moisture-proof and rust-proof treatment).

3) Supporting services: We provide complete CE and ISO certification documents and certificates of origin, and a dedicated logistics specialist will follow up throughout the process to assist with customs clearance and ensure the safe and timely delivery of large equipment to the site.

After-sales support

1) Warranty Commitment: 1-year warranty on core components (dynamometer, torque flange), lifetime maintenance; free troubleshooting and repair services during the warranty period, excluding damage caused by human error.

2) Technical support: 24/7 bilingual (English and Chinese) service, response time ≤ 4 hours

3) Installation, commissioning, and training services: The user is responsible for on-site basic installation. Seelong will dispatch two professional technicians to provide on-site guidance (including equipment positioning and calibration, and pipeline / line connection specifications); equipment commissioning will be handled entirely by us (including power-on testing, parameter calibration, and system linkage testing); 5 days of free professional operation training will be provided (covering equipment operation, parameter settings, daily maintenance, and troubleshooting) to ensure that operators are proficient in using large-scale equipment.

4) Remote service: Supports remote debugging via computer, system upgrades, and modular solution configuration guidance, quickly resolving technical issues during use and minimizing downtime losses.
